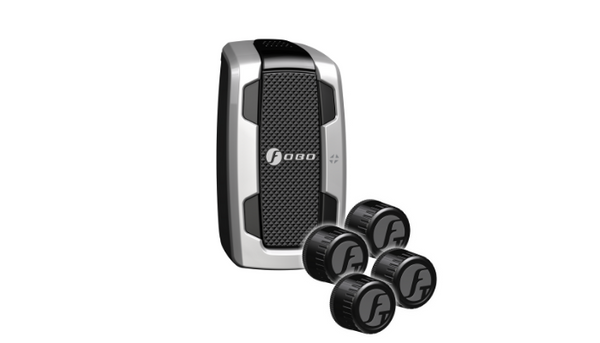

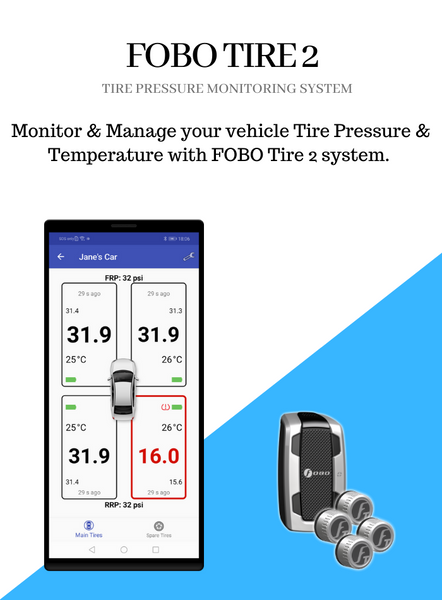

FOBO TIRE 2
SMART BLUETOOTH TIRE PRESSURE MONITORING SYSTEM (TPMS) using latest Bluetooth 5.0 (Sensors) that works directly with your smart device using Android 5.0 and iOS 9.3 or later.
- Monitors up to 800 Kpa (116 psi).
- Real-time alerts.
- Fast & Slow leak detection.
- Auto Synchronization.
- Monitors Spare tire.
FOBO TIRE 2 sensor Specification:
- Bluetooth: v5.0
- Transmit Conducted Power: +5.0dBm (sensor)
- Receiver Sensitivity: Conducted Sensitivity -97dBm @ 0.1%BER
- Antenna Return Loss: Typical -9dB
- Operating Frequency: 2.402~2.480 GHz
- Battery Type: CR1632 (sensor). Operating life up to 1 year. (NOTE: The battery operating life varies according to usage and climate temperature)
- Operating Temperature: -40°C to +85°C (sensor), -20°C to +60°C (sensor with common CR1632 batteries)
- Weight: 7.6g (sensor –with battery)

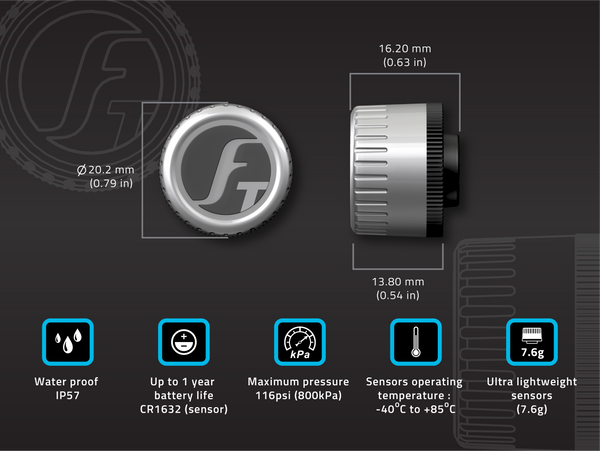

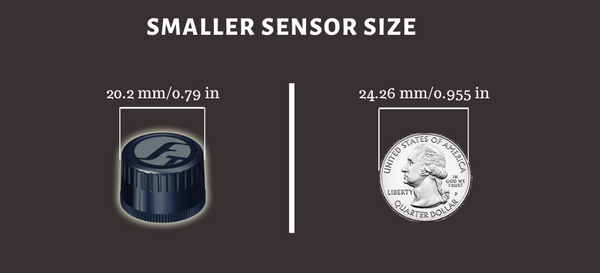

- Sensor Dimension H x D: 13.8mm x 20.2mm
- Maximum Pressure: 800kPa (116psi)
- ESD: 8kV air discharge & 4kV direct contact discharge according to CE standard
- Operating Humidity: up to 90% non-condensing at 40oC
- Dust and Water Proof: IEC60529 compliant to IP57(sensor)
- Sensor structural threshold: 100N ball pressure intensity test
- Mechanical & Environmental Reliability Testing Standards: IEC 60068-2-2, IEC 60068-2-1, ISO 21750, IEC 60068-2-29, IEC 60068-2-5, IEC 60068-2-32, ISO 15184, ISO 2409, SAE J2657, SAEJ113/13
FOBO TIRE 2 In-car unit Specification:
- Weight: ~44.6g (In-Car – without batteries)
- In-Car unit Dimension HxWxL: 25mm x 48mm x 85mm
- Battery Type: AA (In-Car). Operating life up to two years. (NOTE: The battery operating life varies according to usage and climate temperature).
- Operating Temperature: -20°C to 65°C (In-Car)
